At Dhanlaxmi Stainless, we specialize in the production and supply of a diverse range of industrial flanges designed to meet international quality benchmarks. Our product offerings include flanges manufactured from premium materials such as Stainless Steel (grades ASTM A182 F304, F304L, F304H, F316, F316L, F317, F317L, F321, F310, F347, and 904L), Duplex & Super Duplex Steels (UNS S31803, S32750, S32760), and various Nickel Alloys including Hastelloy (B564 B2, C276, C22), Incoloy (Alloy 20, A286, 800H/HT, 825), Inconel (600, 601, 625, 718, 725), and Monel (400, K500). We also offer options in Carbon Steel (ASTM A105, A694 F42, A350 LF2) and Alloy Steel (ASTM A182 F1, F5, F9, F11, F22, F91).
Our flanges are available in sizes ranging from ½" NB to 72" NB and come in pressure classes of 150#, 300#, 600#, 900#, 1500#, and 2500#. The types we offer include Slip-On, Threaded, Lap Joint, Socket Weld, Weld Neck, Blind (Dummy), Orifice, RTJ (Ring Type Joint), Long Weld Neck, and Table Flanges (D, E, F, H).
Engineered for durability, dimensional accuracy, and resistance to corrosion, our flanges are extensively utilized across sectors like Oil & Gas, Petrochemical, Power Plants, Marine Applications, and Water Treatment Facilities. Each flange undergoes stringent quality checks and can be supplied with all relevant testing certifications and third-party inspection reports as required.
| Flanges – Specifications | |
|---|---|
| Product Name | Industrial Pipe Flanges |
| Size Range | 1/2" NB to 72" NB |
| Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Available Materials |
|
| Material Grades |
Stainless Steel: ASTM A182 F304, F304L, F304H, F316, F316L, F317, F317L, F321,
F310, F347,
904L Duplex / Super Duplex: UNS S31803, S32750, S32760 Hastelloy: ASTM B564 B2, C276, C22 Incoloy: Alloy 20, A286, 800H/HT, 825 Inconel: ASTM B564 Alloy 600, 601, 625, 718, 725 Monel: ASTM B564 Monel 400, K500 Carbon Steel: ASTM A105, A694 F42, A350 LF2 Alloy Steel: ASTM A182 F1, F5, F9, F11, F22, F91 Copper Alloys: Brass, Pure Copper, Cupro Nickel 90/10 (C70600), Cupro Nickel 70/30 (C71500) |
| Types | Slip-On Flange, Weld Neck Flange, Socket Weld Flange, Blind Flange (Dummy Flange), Threaded Flange, Lap Joint Flange, Orifice Flange, RTJ Flange (Ring Type Joint), Long Weld Neck Flange, Table Flanges (Table D, E, F, H) |
| Standards | ASME B16.5, ASME B16.47, BS 4504, DIN, EN 1092-1, ANSI |
| End Connections | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) |
| Applications | Oil & Gas, Petrochemicals, Refineries, Power Plants, Shipbuilding, Chemical Plants, Water Treatment Facilities, Nuclear Projects, Offshore Platforms, and Process Piping Systems. |
| Flange Type | Size (NPS) | Dimensions (mm) | Number of Bolts | Bolt Hole Diameter (mm) | Standard | |
|---|---|---|---|---|---|---|
| Outer Diameter (OD) | Bolt Circle Diameter (BCD) | |||||
| Weld Neck Flange | 1/2" - 72" | 90 - 1850 | 60 - 1750 | 4 - 40 | 15 - 68 | ASME B16.5 / B16.47 |
| Slip-On Flange | 1/2" - 72" | 90 - 1850 | 60 - 1750 | 4 - 40 | 15 - 68 | ASME B16.5 / B16.47 |
| Blind Flange | 1/2" - 72" | 90 - 1850 | 60 - 1750 | 4 - 40 | 15 - 68 | ASME B16.5 / B16.47 |
| Threaded Flange | 1/2" - 24" | 90 - 900 | 60 - 860 | 4 - 20 | 15 - 52 | ASME B16.5 |
| Socket Weld Flange | 1/2" - 4" | 90 - 210 | 60 - 165 | 4 - 8 | 15 - 22 | ASME B16.5 |
| Lap Joint Flange | 1/2" - 72" | 90 - 1850 | 60 - 1750 | 4 - 40 | 15 - 68 | ASME B16.5 / B16.47 |
| Orifice Flange | 1/2" - 24" | 90 - 800 | 60 - 765 | 4 - 20 | 15 - 45 | ASME B16.36 |
| RTJ Flange (Ring Type Joint) | 1/2" - 36" | 100 - 1250 | 75 - 1200 | 4 - 32 | 15 - 64 | ASME B16.5 / B16.47 |
| Long Weld Neck Flange | 1/2" - 24" | 100 - 850 | 70 - 800 | 4 - 20 | 15 - 52 | ASME B16.5 |
| Table Flange (D, E, F, H) | 1/2" - 36" | 95 - 920 | 65 - 880 | 4 - 24 | 14 - 50 | BS 10 / BS 4504 |

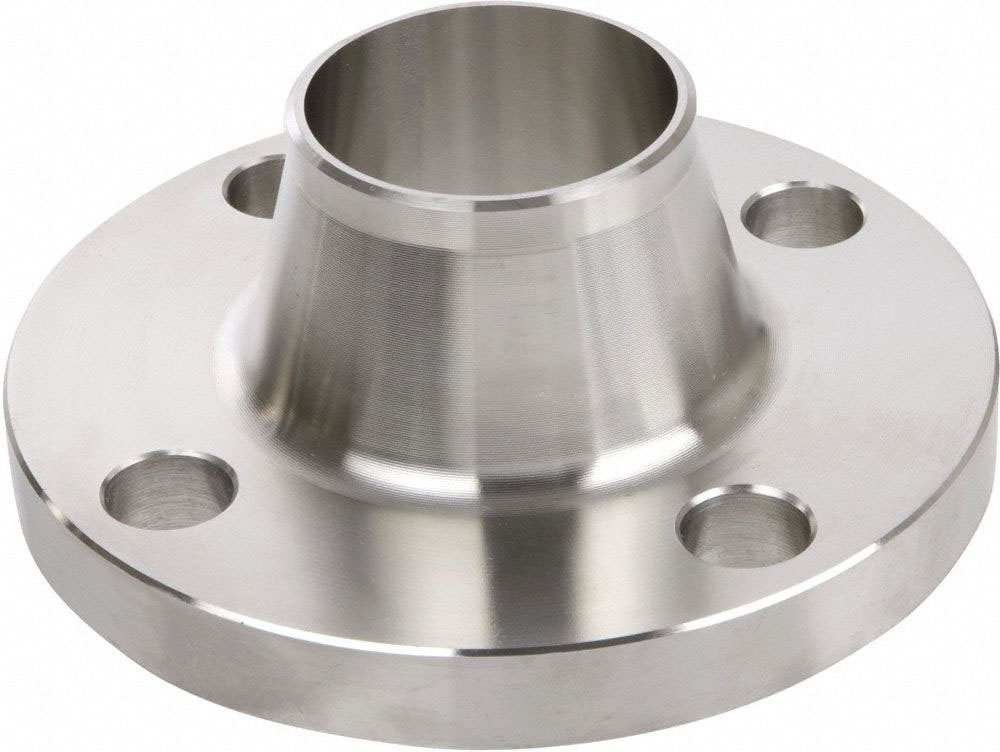

Weld Neck Flanges are designed to handle high pressure, high temperature, and hazardous conditions. Their long tapered hub ensures even stress distribution and a secure, leak-proof weld connection with the pipe.

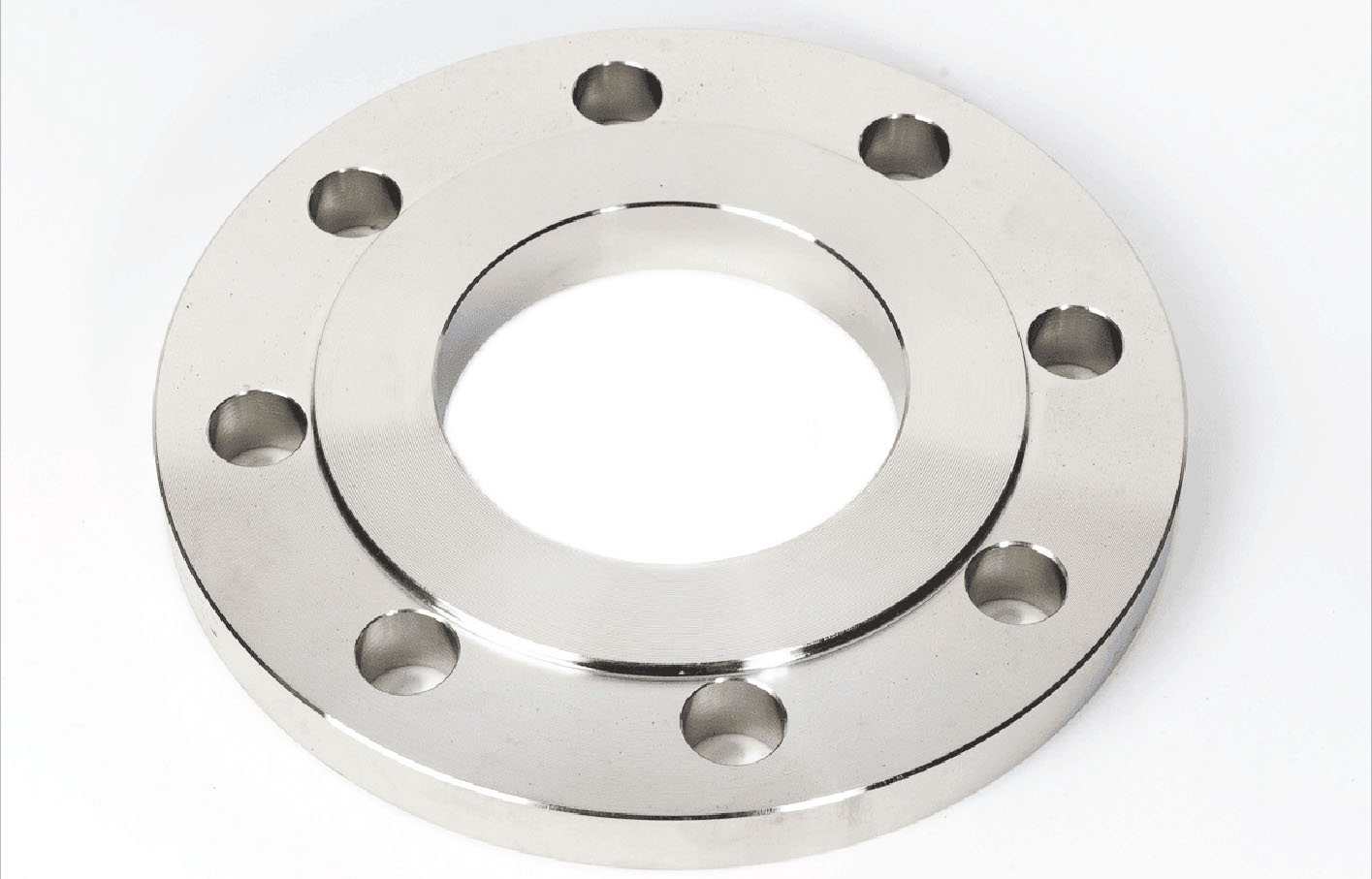

Slip-On Flanges are designed to slide over the end of a pipe and are then welded both inside and outside for strength and leak prevention. These flanges are ideal for lower pressure applications and are easier to align than weld neck types.

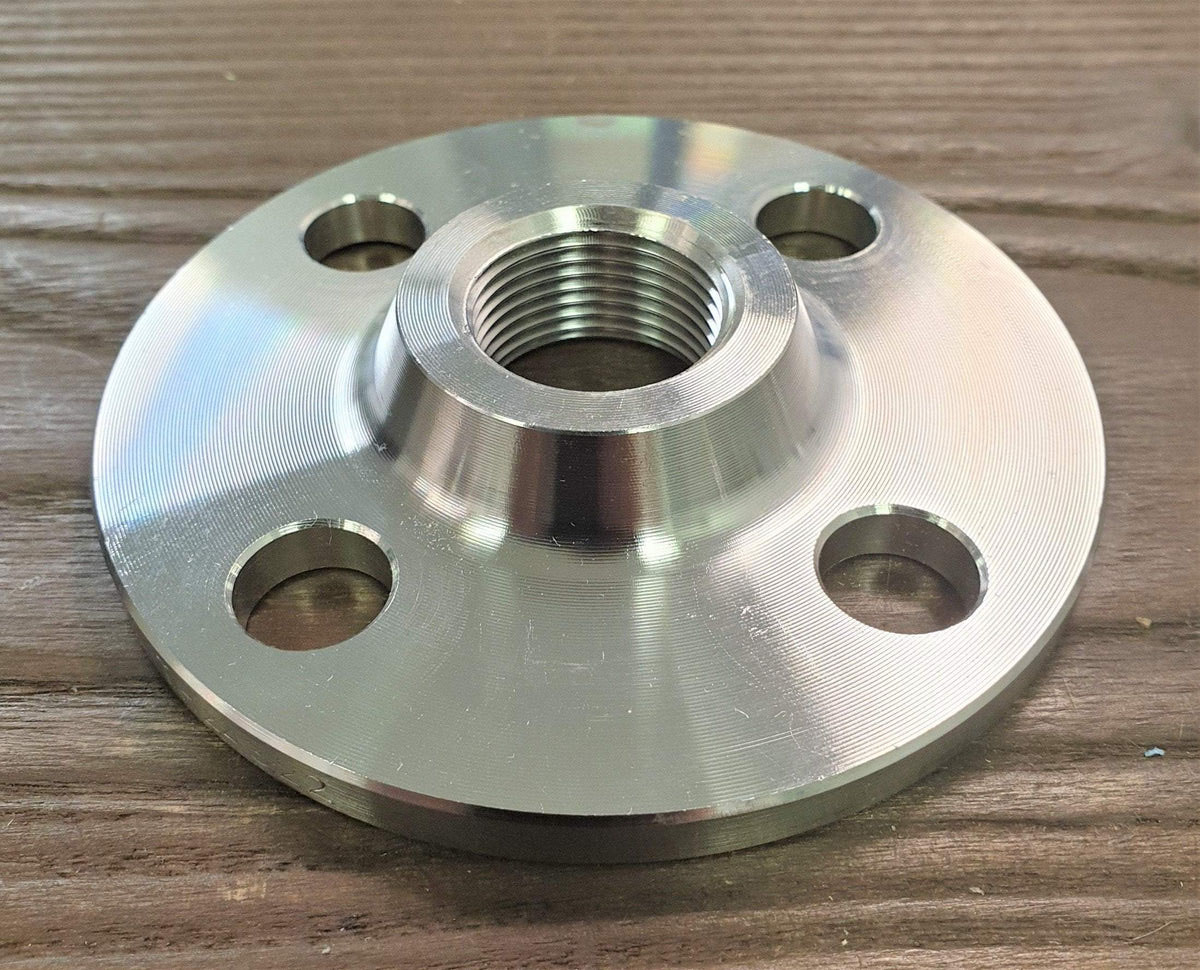

Threaded Flanges are designed with internal threads that allow them to be screwed onto the pipe without welding. These flanges are ideal for systems where welding is not feasible or allowed due to hazardous conditions.

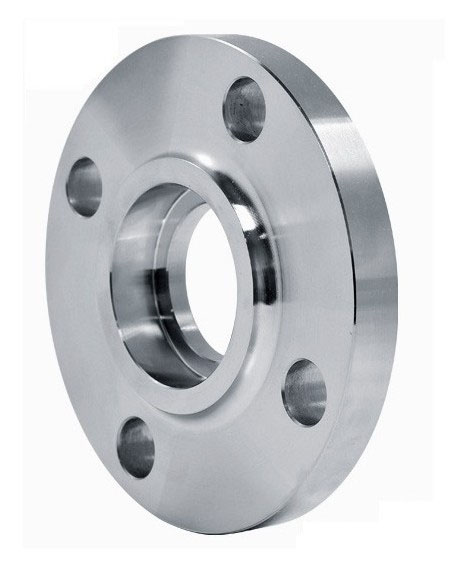

Socket Weld Flanges are designed for small-bore piping systems with high pressure. The pipe is inserted into the socket end and then fillet welded around the top, creating a strong and smooth flow path with reduced turbulence and leakage risk.

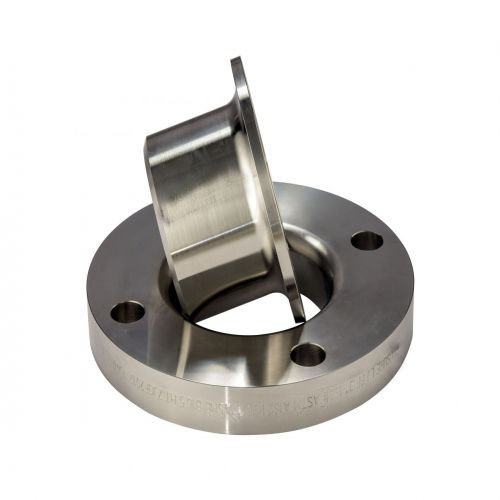

Lap Joint Flanges are used with stub ends and are ideal for systems requiring frequent disassembly. These flanges rotate freely around the stub end, making bolt alignment easy and reducing overall installation effort—especially for large or rigid pipe systems.

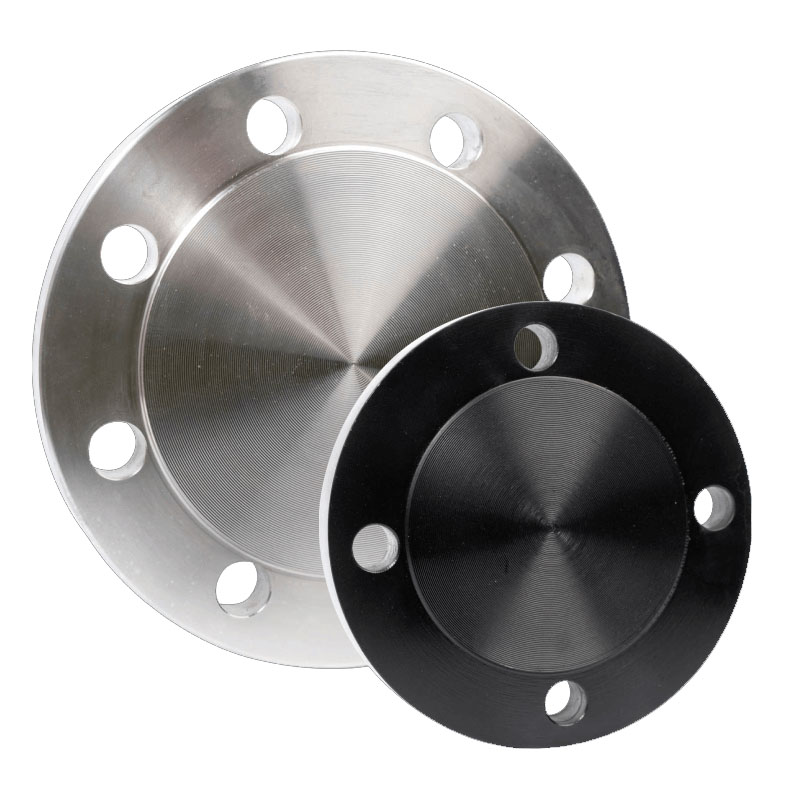

Blind Flanges are solid disks used to close the end of piping systems or pressure vessel openings. They allow for easy access to the system when needed and are commonly used in high-pressure applications where future expansion or inspection is required.

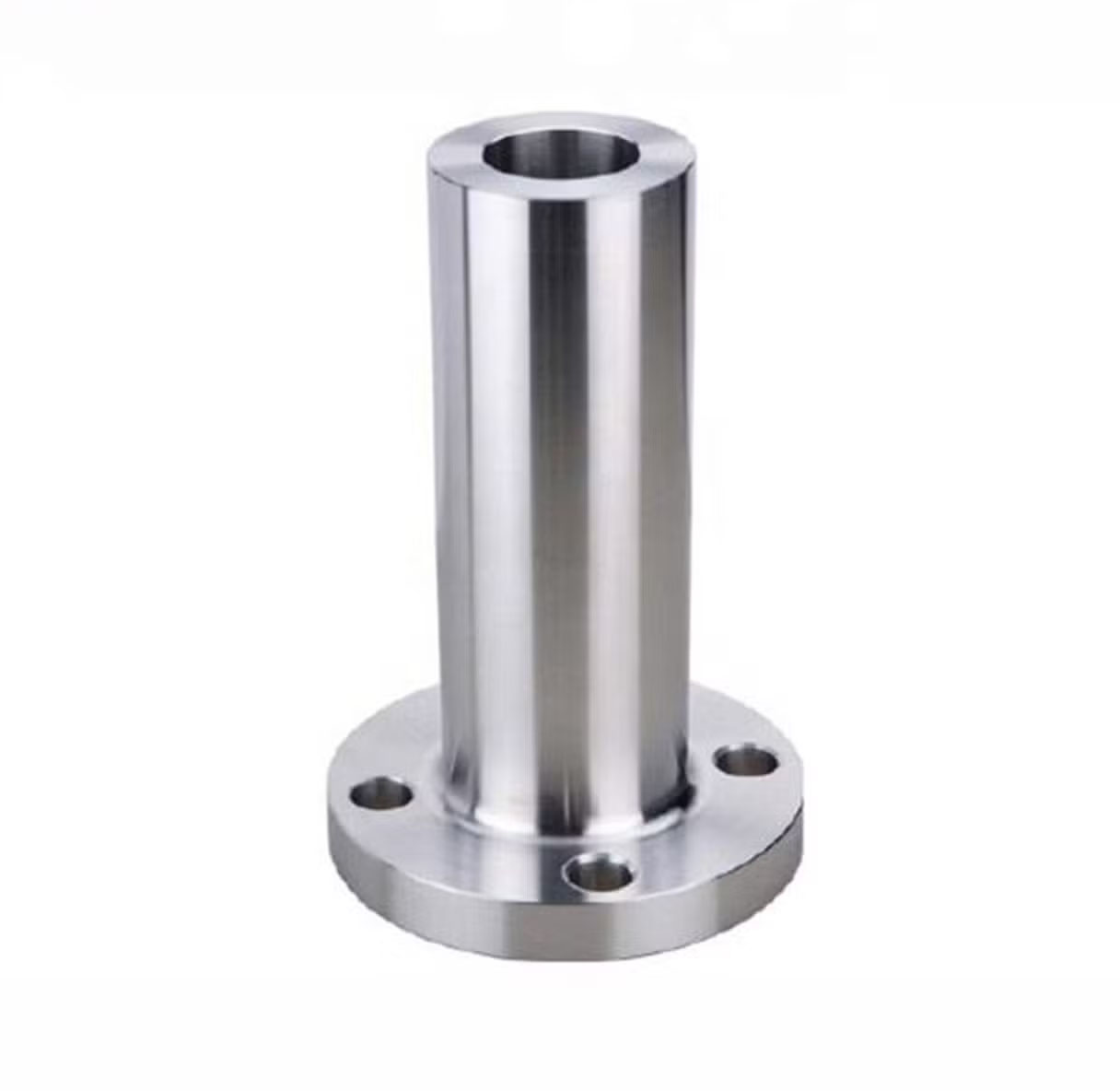

Long Weld Neck Flanges (LWN) are similar to standard weld neck flanges but have an extended neck, making them ideal for high-pressure and high-temperature applications. They are commonly used in process piping, vessel connections, and high-integrity systems.

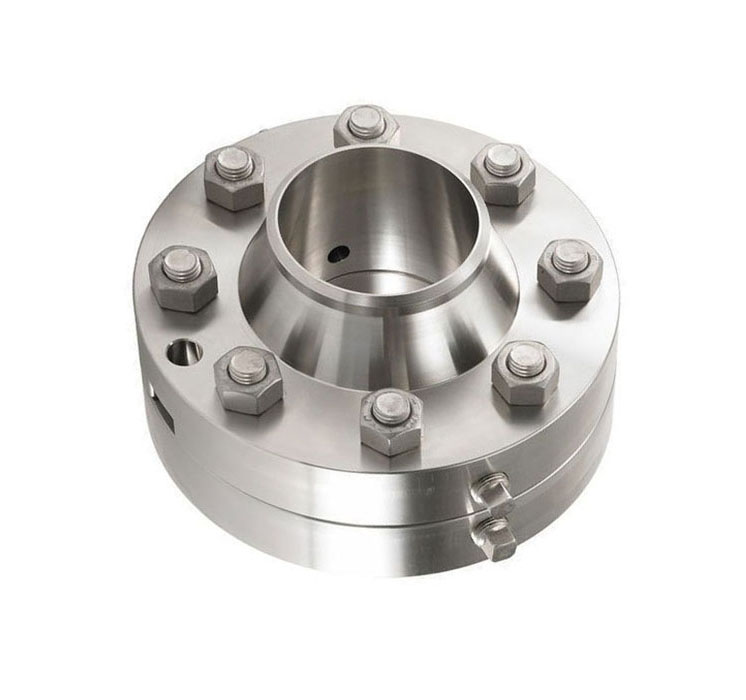

Orifice Flanges are used in conjunction with orifice meters to measure the flow rate of liquids or gases in pipelines. They are typically provided in pairs and include tapped holes for mounting pressure gauges and instrumentation.

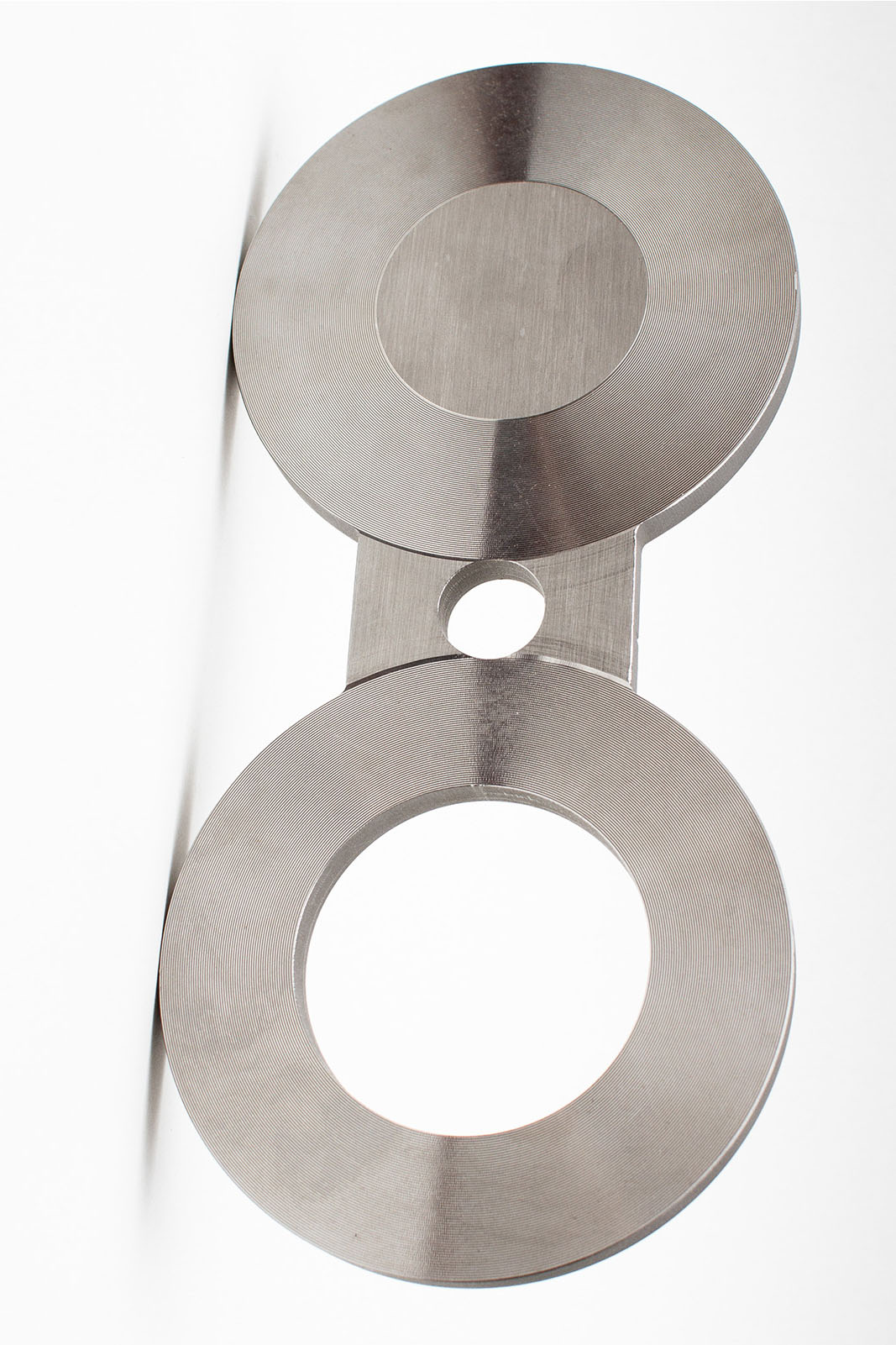

Spectacle Blind Flanges are primarily used for positive isolation in piping systems. They consist of a solid plate (blind) and a ring (spacer) connected by a web or bar, allowing operators to block or open the pipeline easily by rotating the unit.

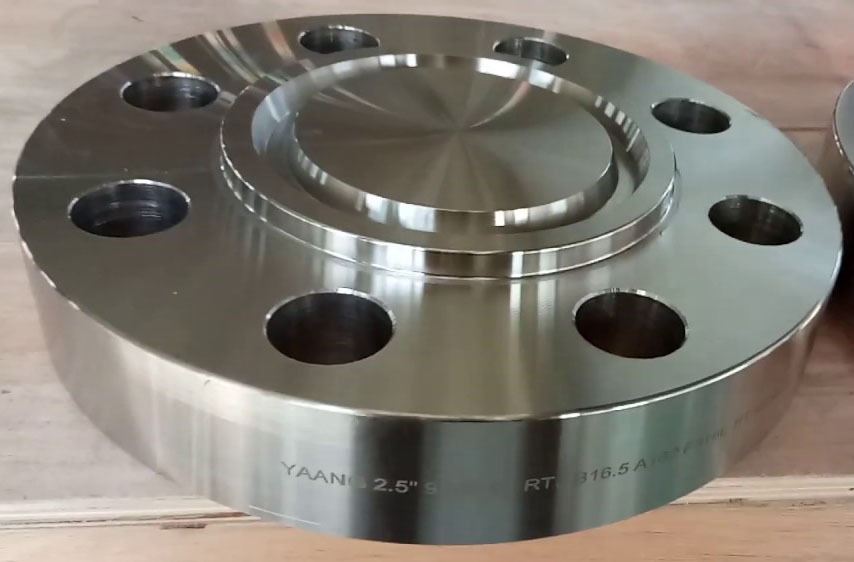

RTJ Flanges are precision-machined flanges designed to ensure leak-proof metal-to-metal sealing in high-pressure and high-temperature applications. These flanges use a specially shaped metallic ring that fits into a hexagonal groove for optimal sealing integrity.
Flanges play a vital role in enabling reliable connections across various demanding industries.
Used in high-pressure pipelines, offshore rigs, and refineries for leak-proof and durable connections.
Handles corrosive chemicals and extreme temperatures in chemical processing and transport systems.
Essential in thermal, nuclear, and hydro power plants for connecting turbines, boilers, and piping.
Used in marine engines and piping systems for their corrosion resistance and mechanical strength.
Enable seamless flow control in desalination units, filtration systems, and water supply lines.
Applicable across heavy machinery, structural pipelines, and process equipment.
